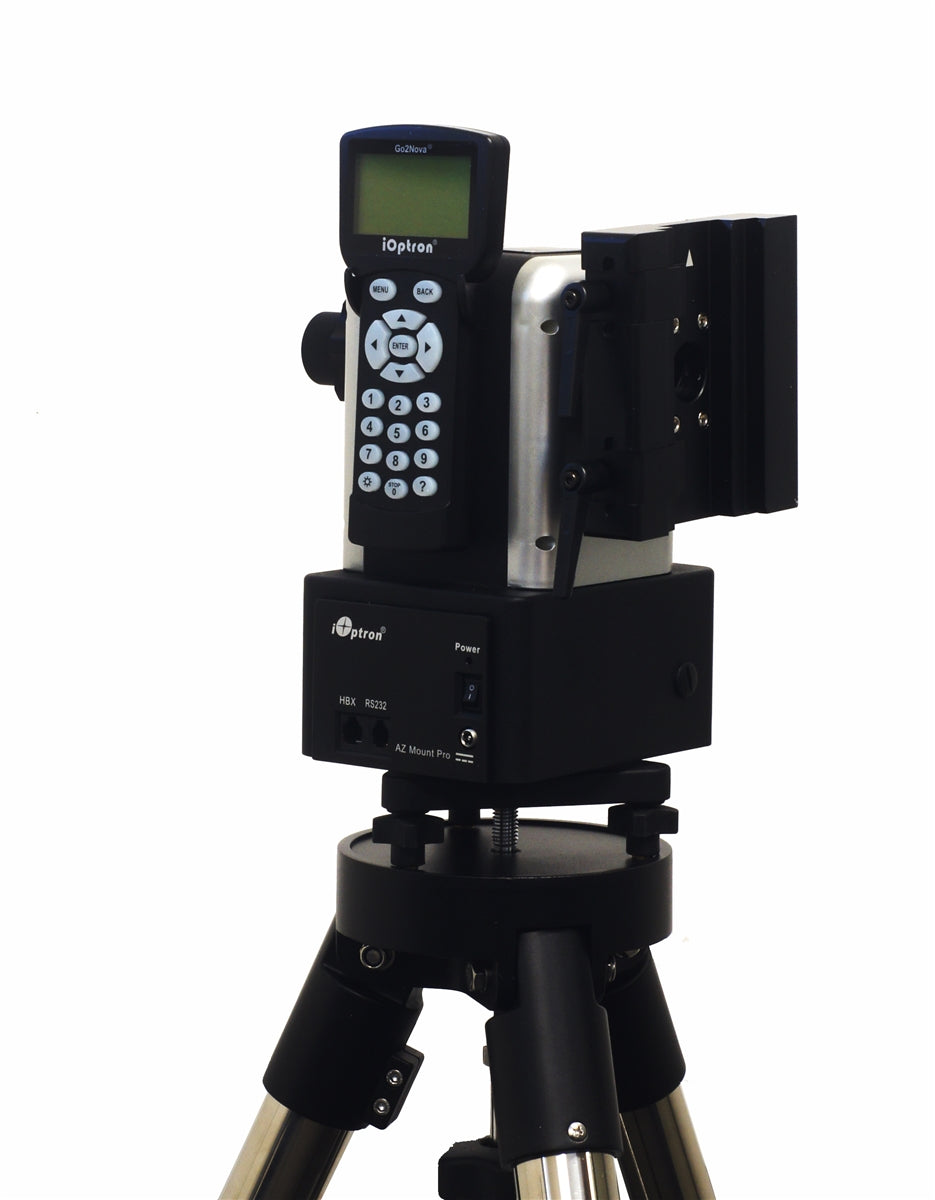

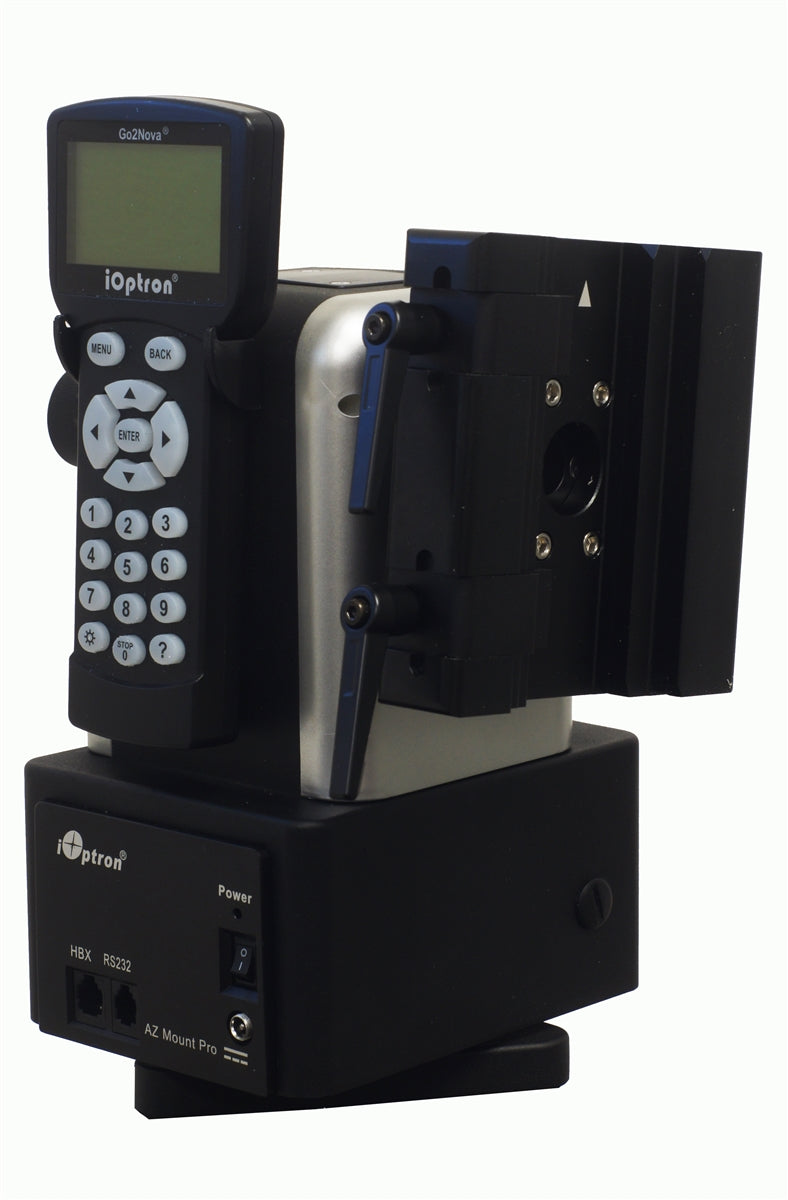

AZ Mount Pro with LiteRoc Tripod

AZ Mount Pro with LiteRoc Tripod

Regular price $2,999.00
Regular price Sale price $2,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.


Introducing the AZ Mount Pro with its intuitive "level and go" GOTO setup. This refers to the iOptron AZ Mount Pro's uncomplicated setup process. With the assistance of its precision level indicator, the operator levels the mount and powers it on, and the computerized alt-azimuth telescope mount takes over from there. The mount uses its 32-channel GPS receiver and position and angular detection sensors to calculate its global position and telescope orientation, automatically slewing the instrument to a bright object in the night sky. The user then verifies that the object is in the center of the view to activate tracking and GOTO functionality.

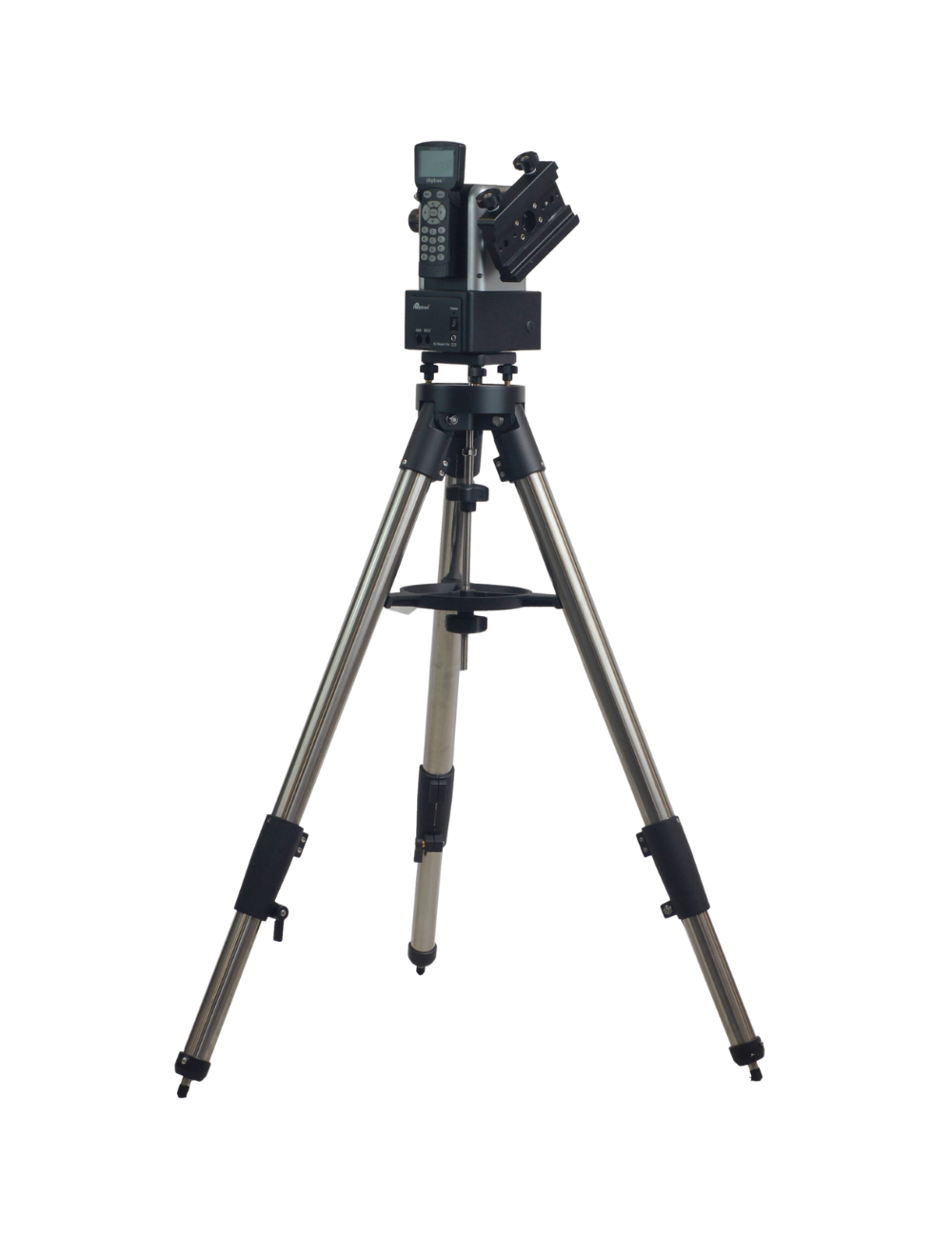

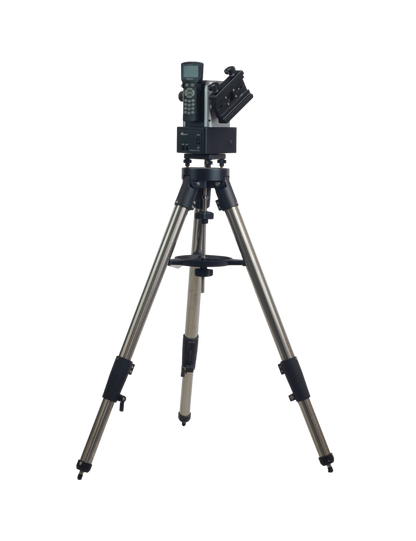

Furthermore, the AZ Mount Pro is accompanied by the new LiteRoc tripod, which is lighter than the previous 2" model but has comparable stability. Additionally, the tripod has improved leg cuffs and sockets for increased rigidity and redesigned leg lock levers to secure the extensions' position.

Product specs:

Mount      AltAzimuth Mount
Body Materials   Die-cast Aluminum
System   GoToNova®
Primary Payload   15kg
Secondary Payload   4.5kg
Mount Weight   5.9kg (including CW shaft and battery)
Gear   Aluminum worm wheel/Brass worm gear
Motor   128X microstep stepper motor
Transmission   Sychronous belt
Resolution   0.1 arc second
Tracking   Automatic
Tracking Rate   celestial, solar, lunar and user defined
Hand controller   Go2Nova® 8407 with over 212,000 object database
Slew Speed   1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
GPS   32-channel GPS
Sensors   Position and angular detection
Level indicator   Yes
Dovetail Saddle   15cm Losmandy/Vixen dual saddle
Optional secondary Vixen saddle
Counterweight   4.5kg
Battery   Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
Battery Running Time   10 hour at 20ºC
Battery Charger   100-240V AC input /12.6V DC 2000mA output (Included)
Wireless Control   Yes, full control via built-in WIFI adapter
Firmware Upgrade   Yes, via serial port
Computer Control   Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
Tripod   LiteRoc 1.75" stainless steel tripod
Warranty   Two year limited warranty for mount
90 day limited for battery


Product features:


  • On board rechargeable lithium ion battery for up to 10 hours of use
  • 15kg primary payload and 4.5kg secondary payload capacity, with a mount weighing under 6kg
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counter weight shaft
  • Position memorization at power interruption
  • Die-cast aluminum body
  • 3-Point easy level adjustment on tripod
  • 15cm dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 25cm tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • Aluminum Hard Case
  • 1X 4.5kg counterweight included
  • LiteRoc 1.75 inch heavy duty stainless steel tripod included
  • Two year limited warranty (90 day for battery)
