Celestron

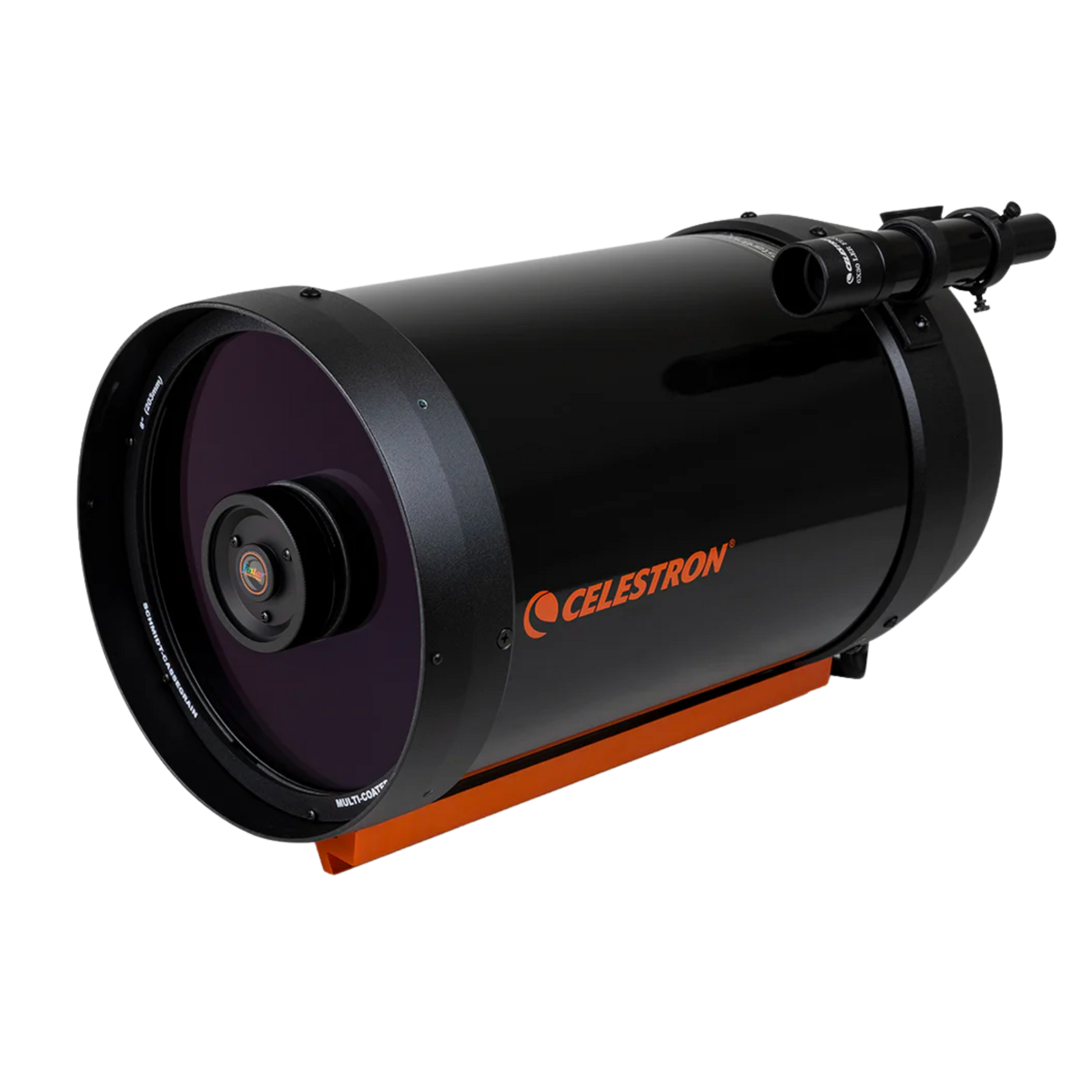

Celestron C8 Optical Tube Assembly

Celestron C8 Optical Tube Assembly

Regular price $2,695.00
Regular price Sale price $2,695.00
Sale Out of Stock
Tax included. Shipping calculated at checkout.

The Celestron C8 is the direct (but much improved) descendent of Celestron's revolutionary C8 that transformed the hobby of astronomy when it was unveiled in 1970. This rugged aluminum optical tube is only 17 inches long and weighs just 13 pounds, making it easy to transport and set up. But the views are much more impressive than what you'd expect from such a compact instrument. The tube offers 2032 mm of focal length and a focal ratio of f/10, with the added versatility of Fastar (see below).

It is equipped with Celestron's patented StarBright XLT optical coatings, which visibly increase contrast and light transmission for brighter deep space images and shorter exposure times. With StarBright XLT, you'll be able to discern subtle details while viewing the Moon and planets as well as faint galaxies and nebulae.

The Celestron C8-A can be mounted on a multitude of computerized telescope mounts thanks to its CGEM style dovetail bar. This iconic optical tube provides the best balance of portability, handling ease, light gathering ability and price ever offered to the amateur astronomer.

FASTAR TECHNOLOGY
In 1997, CCDs were making a name for themselves in the astrophotography world, quickly supplanting traditional film photography thanks to their speed and convenience. This was the year that Celestron joined forces with the Santa Barbara Instruments Group (SBIG) to produce Fastar, a revolutionary add-on to Celestron's hugely popular Schmidt-Cassegrain (SCT) optical system.

With Fastar, the SCT's secondary mirror can be removed and replaced with a field-flattening lens assembly (sold separately by third party manufacturers) so that a CCD camera can be used in the front of the telescope at the f/2 focus of the instrument's primary mirror. The potential of the Fastar system is staggering: exposures are 25 times shorter than if the camera was placed at the instrument's native f/10 focus. Imagers can capture galaxies and nebulae with exposures of just 30 seconds.


STARBRIGHT XLT COATINGS
StarBright XLT is Celestron's revolutionary optical coating system. It consistently outperforms all other coatings in the commercial telescope market. There are three major components that make up our StarBright XLT high-transmission optical system design:

Unique enhanced multi-layer mirror coatings made from precise layers of aluminum, SiO2 (quartz), TiO2 (titanium dioxide), and SiO2 (silicon dioxide). Reflectivity is fairly flat across the spectrum, optimizing it for both imaging and visual observing.
Multi-layer anti-reflective coatings made from precise layers of MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide). Hafnium, a rare element that costs nearly $2,000 per kilogram, gives us a wider band pass than the titanium used in competing coatings.
High-transmission water white glass is used instead of soda lime glass for the corrector lens. Water white glass transmits about 90.5% of light without anti-reflective coatings; that's 3.5% better than uncoated soda lime glass. When water white glass is used in conjunction with StarBright XLT's anti-reflective coatings, the average transmission reaches an astonishing 97.4.

These three components make StarBright XLT one of the finest coatings available.


Specs:



Optical Design
Schmidt-Cassegrain
Aperture
203.2mm (8")
Focal Length
2032mm
Focal Ratio
f/10
Focal Length of Eyepiece 1
25mm
Magnification of Eyepiece 1
81x
Finderscope
6x30
Star Diagonal
1.25" Star Diagonal
Optical Tube
Aluminum
Highest Useful Magnification
480x
Lowest Useful Magnification
29x
Limiting Stellar Magnitude
14
Resolution (Rayleigh)
0.69 arc seconds
Resolution (Dawes)
0.57 arc seconds
Light Gathering Power (Compared to human eye)
843x
Secondary Mirror Obstruction
64mm
Secondary Mirror Obstruction by Diameter
31%
Secondary Mirror Obstruction by Area
9.77%
Optical Coatings
StarBright XLT
Optical Tube Length
432mm
Optical Tube Diameter
238mm
Optical Tube Weight
5.7 kg
Dovetail
CGE Dovetail Bar
