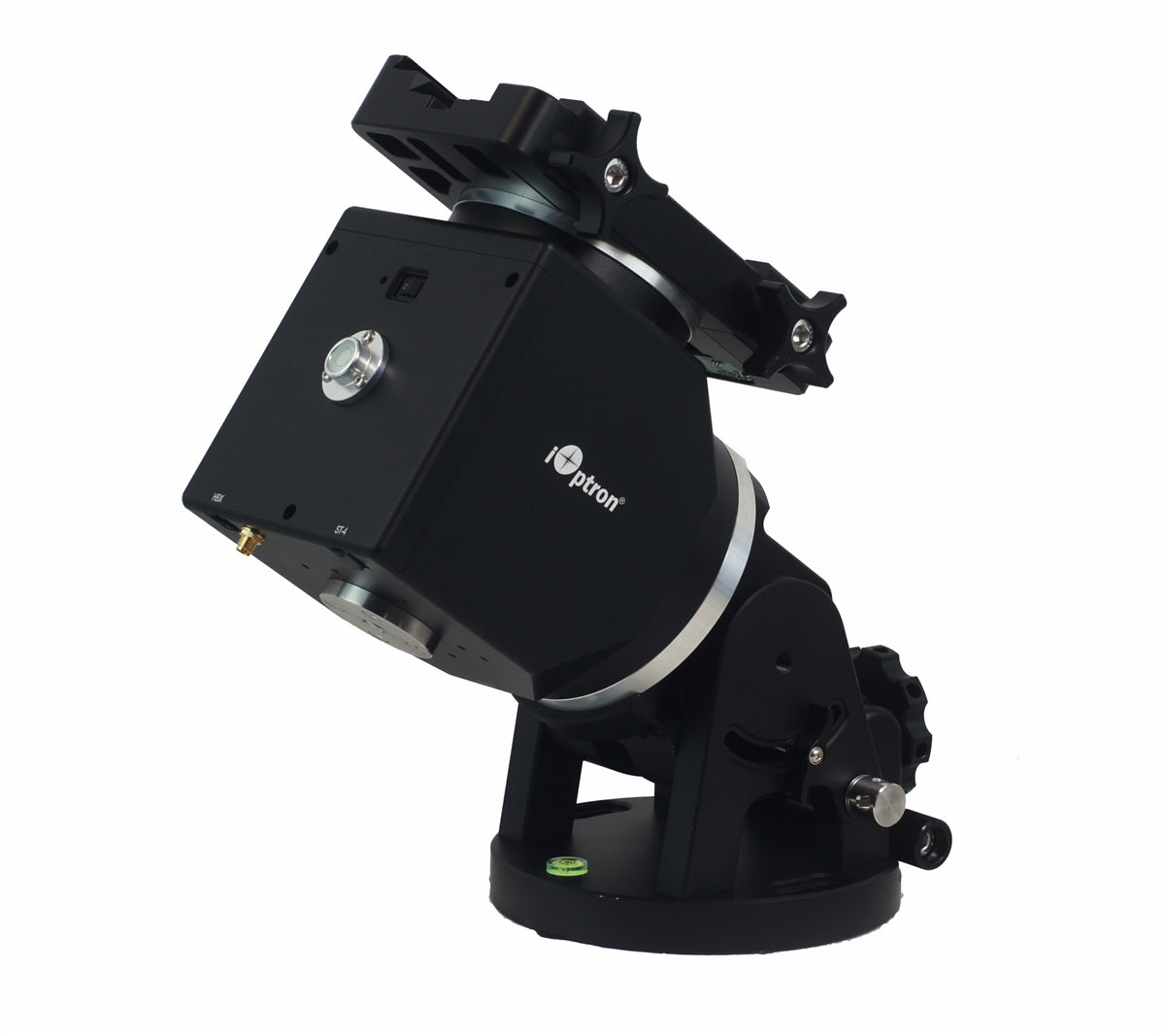

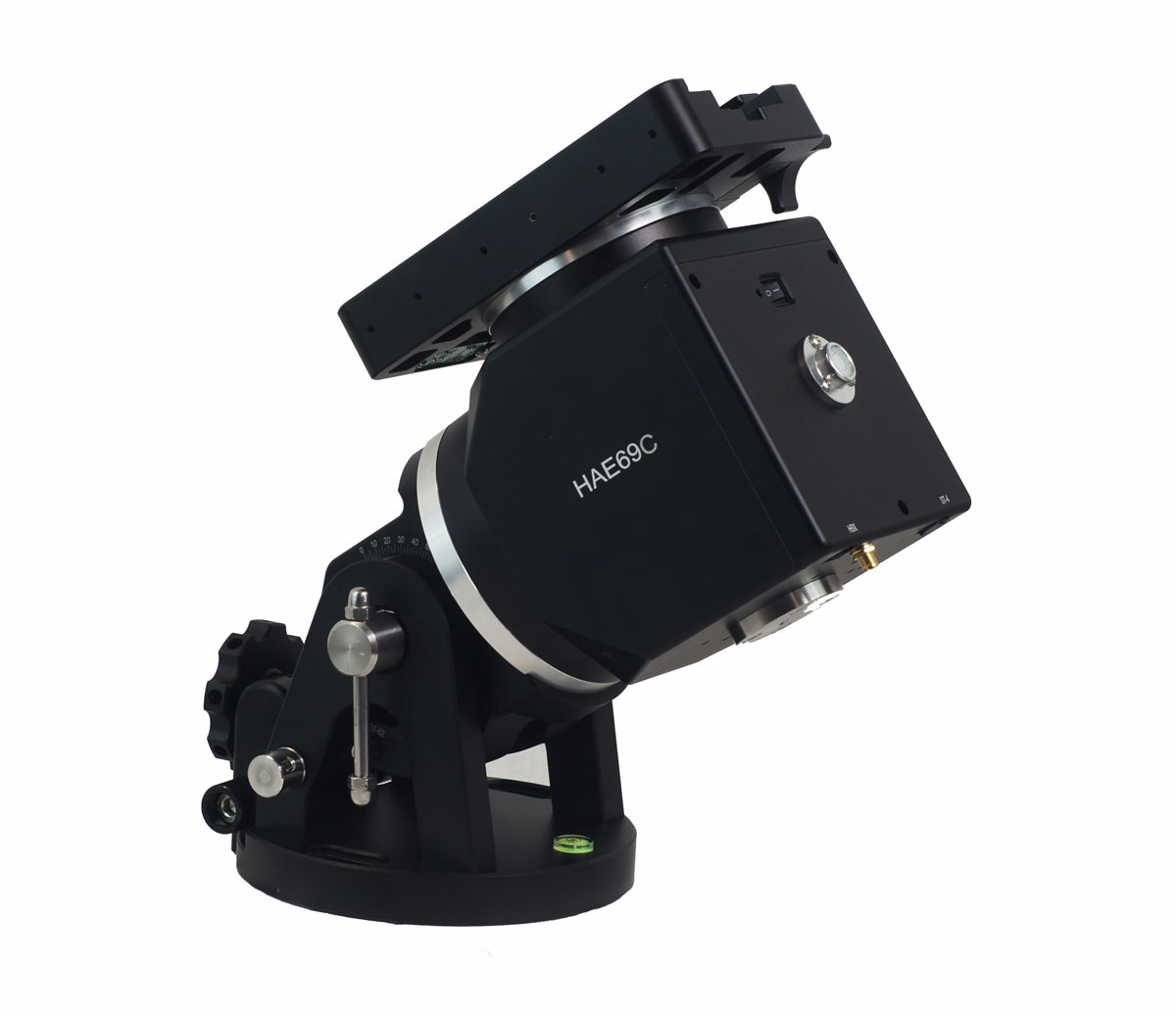

iOptron HAE69C Dual AZ/EQ Strain Wave Mount

1 3
$8,695.00 NZD
$8,695.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

These lightweight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 8.6kg with a payload capability of 31 kg, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.

Utilising state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodised, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake allows the mount to stop safely during a planned or unplanned power interruption.

HAE69C dual SWG Alt-az/ Eq mount now has an internal main board and no longer requires use with a handset. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection.

The optional 8411 Go2Nova® handset with OLED will provide a better user experiences, especially at extreme temperatures.



View full details
MountStrain Wave Altazimuth/Equatorial Mount
RA Gear SystemStrain Wave Gear
DEC Gear SystemStrain Wave Gear
Reduction RatioRA 800:1, DEC 800:1
Payload without Counterweight *31kg (69 lbs)
Mount Weight9kg (19.8 lbs) with dovetail saddle
Payload with Counterweight *36kg (79 lbs)
Period270 second
PE (by Encoder) **< ± 15 arcsec
Azimuth Adjustment Range± 8°
Latitude Adjustment Range0° ~ 90°
Drive MotorStepper motor
Structure MaterialAll metal, CNC machined
Exterior FinishAnodized black
Polar ScopeiPolar electronic polar scope (optional)
Level IndicatorLevel bubble
Control SystemGOTONOVA/Commander
HandsetGo2Nova® 8411 w/OLED display (optional)
TrackingAutomatic
Maximum Slew Speed4.5º/sec
Power Consumption1A(Tracking), 1.6A(GOTO)
PowerDC12V-6A (5.5/2.1mm DC plug)
AC Adapter100V ~ 240V (included, indoor use only)
Power Off BrakeElectronic friction brake

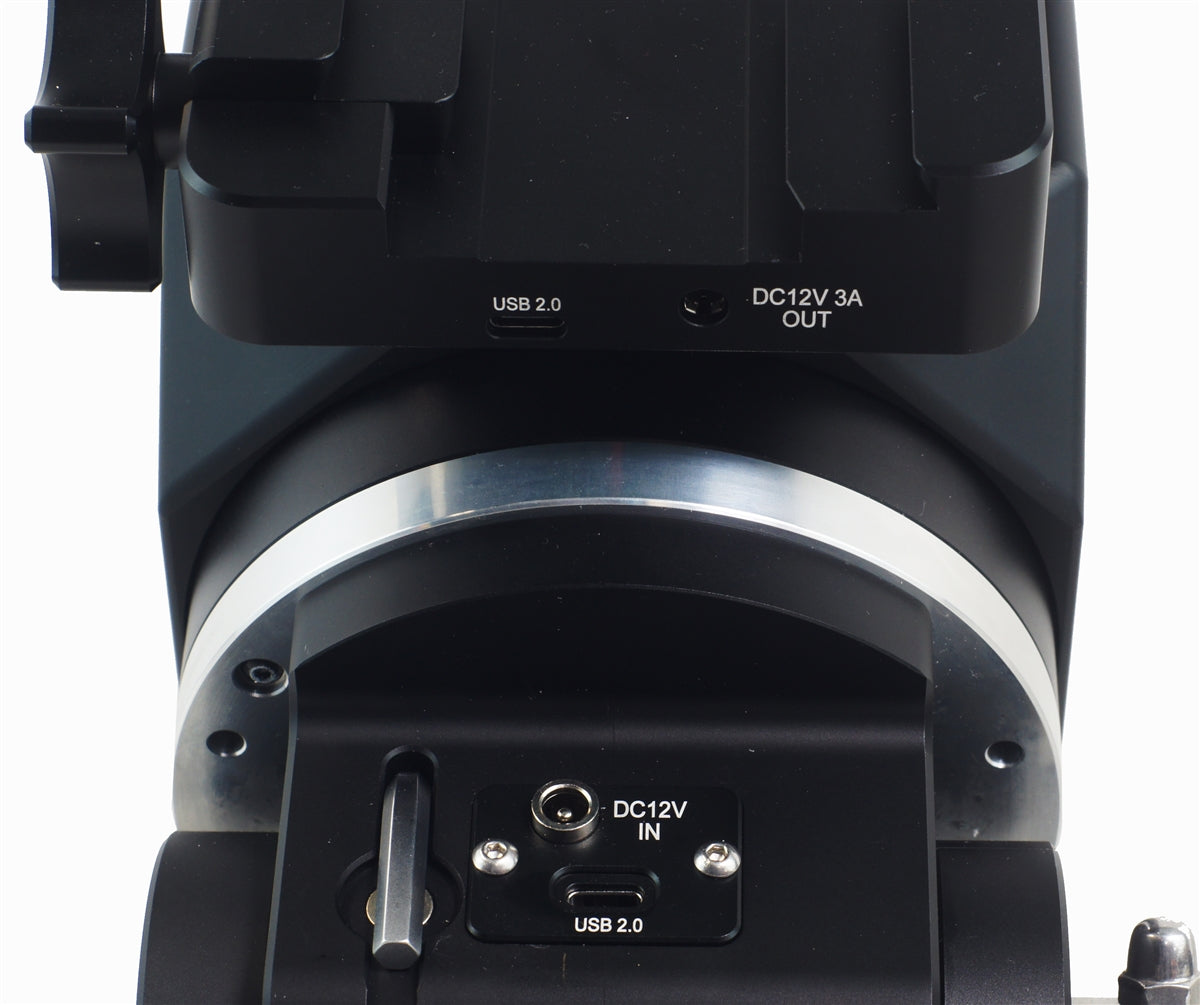

Ports on Dovetail SaddleDC12V output and USB-C port
Communication PortYes (USB and Wi-Fi)
Autoguide PortYes (ST-4 compatible)
Firmware UpgradeYes (USB via Windows)
Dovetail SaddleVixen/Losmandy dual saddle
Mounting Base Diameter152mm
TripodOptional
Counterweight ShaftSS Φ20X200mm, 3/8"-16 thread (Optional)
Counterweight4.5kg (10 lbs) (Optional)
Operation Temperature-20ºC ~ 40ºC
WarrantyTwo year limited

* 250mm, with payload center of gravity to the RA rotation axis.

  • Advanced strain wave gear system technology
  • Payload capacity of 31 kg (69 lbs) with the mount weight of 8.6 kg (19 lbs, includes dovetail saddle)
  • PE < ± 15 arcsec
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 270-second gear period
  • Go2Nova® handset with OLED for better user experiences, especially at extreme temperatures (optional)
  • iPolar electronic polar scope for easy and accurate polar alignment (optional)
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built-in zero position search and locator
  • Integrated ST-4 autoguiding port
  • USB port (on both mount base and dovetail saddle) for firmware upgrade and computer control
  • No cable drags
  • Built-in Wi-Fi for mount control
  • Aluminum carrying case
  • Two-year warranty
