iOptron CEM26 GoTo EQ Mount with iPolar & Hard Case
iOptron CEM26 GoTo EQ Mount with iPolar & Hard Case
Couldn't load pickup availability

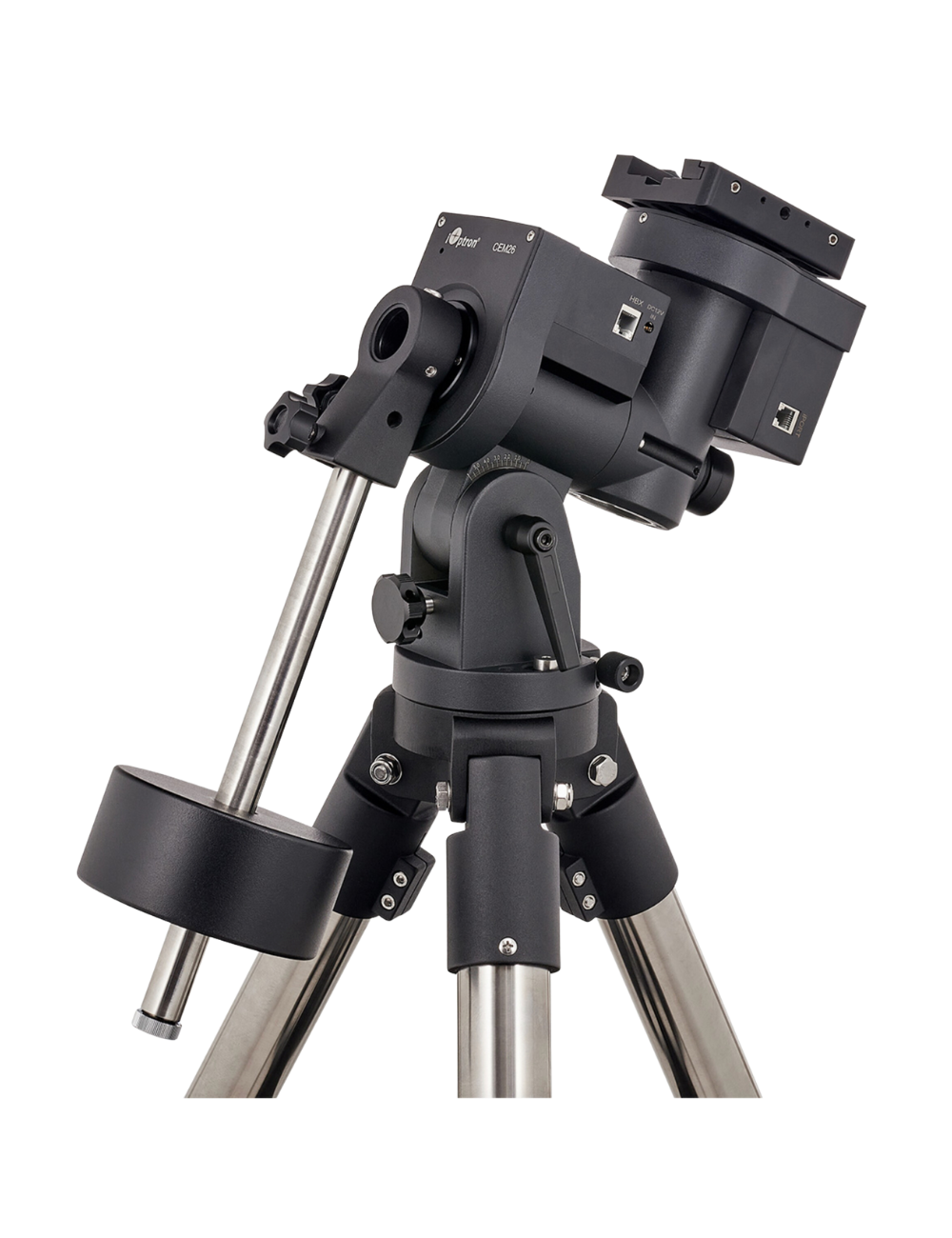

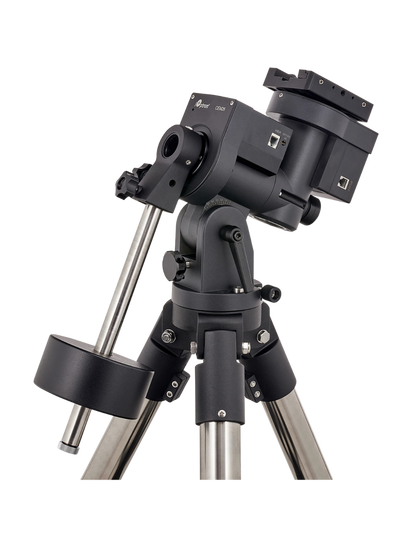

iOptron introduces the CEM26, their next-generation compact center-balance equatorial mount. This mount is designed with portability in mind, weighing only 4.5kg yet able to support up to a 12kg payload, resulting in an impressive 2.6 mount weight to payload ratio. The CEM design focuses the mount and payload weight directly on the center of the tripod, providing natural stability.
Building on the legacy of earlier CEM models, the CEM26 features added convenience and functionality. It has a positive lock gear engagement system that is easy to use even when wearing gloves. The built-in Wi-Fi feature allows for unparalleled connectivity, and the mount also has a recordable permanent periodic error correction (PPEC) for optimal PEC training sessions. The CEM26 delivers precise pointing and accurate tracking, setting a new standard for compact equatorial mounts.
The center-balanced design of the CEM26 puts the weight of the payload at the center of gravity, allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod and polar aligning that is quick and accessible at all times since the polar scope is not blocked by the declination shaft.
Equipped with the latest advanced GOTONOVA® GOTO technology, the CEM26 is one of the most powerful and accurate GOTO mounts available, with a database of over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use, and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

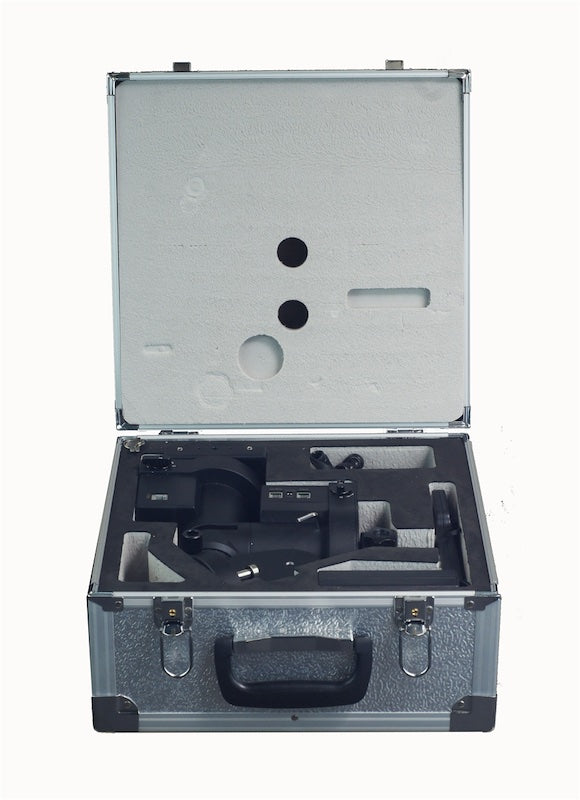

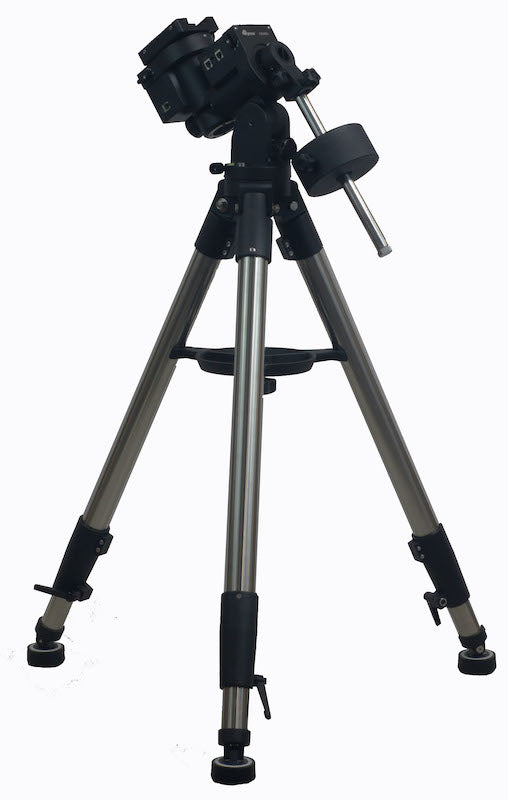

The CEM26 comes with the iPolar electronic polar scope, a 1.5" heavy duty stainless steel tripod, and an aluminium um carrying case.
Product specs:
| Mount |
Center-Balanced Equatorial Mount |
| Payload |
12kg, excluding counterweight |
| Mount weight |
4.5kg |
| Payload/Mount weight |
2.60 |
| Structure Material |
All metal, Casting + CNC machined |
| Exterior Finish |
Powder coating |
| Periodic error (PE) |
<±10 arcsec |
| PEC |
Yes, Permanent PEC |
| Worm period |
600 sec |
| Right Ascension worm wheel |
Φ88mm, 144 teeth aluminum |
| Declination worm wheel |
Φ88mm, 144 teeth aluminum |
| Right Ascension axis shaft |
Φ35mm steel |
| Declination axis shaft |
Φ35mm steel |
| Right Ascension bearing |
Φ55mm ball bearing |
| Declination bearing |
Φ55mm ball bearing |
| Worm gears |
Φ15.2mm, Brass |
| Motor drive |
1.8º stepper motor, 128X microdivision |
| Resolution |
0.17 arc seconds |
| Transmission |
Synchronous belt |
| Latitude adjustment range |
0º ~ 60º |
| Azimuth adjustment range |
± 6º |
| Polar Scope | iPolar electronic polar scope |
| Level indicator |
Level bubble |
| Hand Controller |
Go2Nova® 8409 with ~212,000 objects database |
| Tracking |
Automatic |
| Slew speed |
1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec) |
| Power consumption |
0.5A(Tracking), 0.8A(GOTO) |
| Power requirement |
12V DC, 5A |
| AC adapter |
100V ~ 240V (included) |
| Power-down memory |
Yes |
| Wi-Fi |
Built-in |
| Communication port |
Yes (Wi-Fi and USB) |
| Autoguide port |
Yes (ST-4 compatible) |
| Firmware upgrade |
Yes |
| PC computer control |
Yes (ASCOM) |
| Counterweight shaft |
Φ20X306mm (M16), Stainless Steel |
| Counterweight |
4.5kg |
| Tripod |
1.5" Stainless Steel (5kg) |
| Dovetail saddle |
3.8" Vixen-style, centre adjustable |
| Hard case |
Included |
| GPS |
Optional external 32-channel GPS |
| Autoguiding |
Optional external iGuider 1 |
| Operation temperature |
-10ºC ~ 40ºC |
Features:
- Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
- Ideal for both visual observation and astrophotography
- Low periodic error (< ± 10 arc seconds)
- Payload of 12 kg with the mount-only weight of 4.5 kg
- CNC machined and cast metal body
- Spring loaded gear system
- Large easy to use quick-lock gear clutches
- Adjustable counterweight shaft for 0º latitude operation
- Stepper motor with low power consumption
- Integrated iOptron iPolarTM electronic polar scope
- Polar alignment routine for those who can’t see the Pole Star
- Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi
- USB port for firmware upgrade and computer control
- Standard 1.5 inch heavy-duty stainless steel tripod (5kg)
- Die-cast metal tripod spreader with accessory tray
- Hard carrying case
- Optional 32-channel Global Positioning System (GPS)
- Optional iGuiderTM autoguiding system #3360
