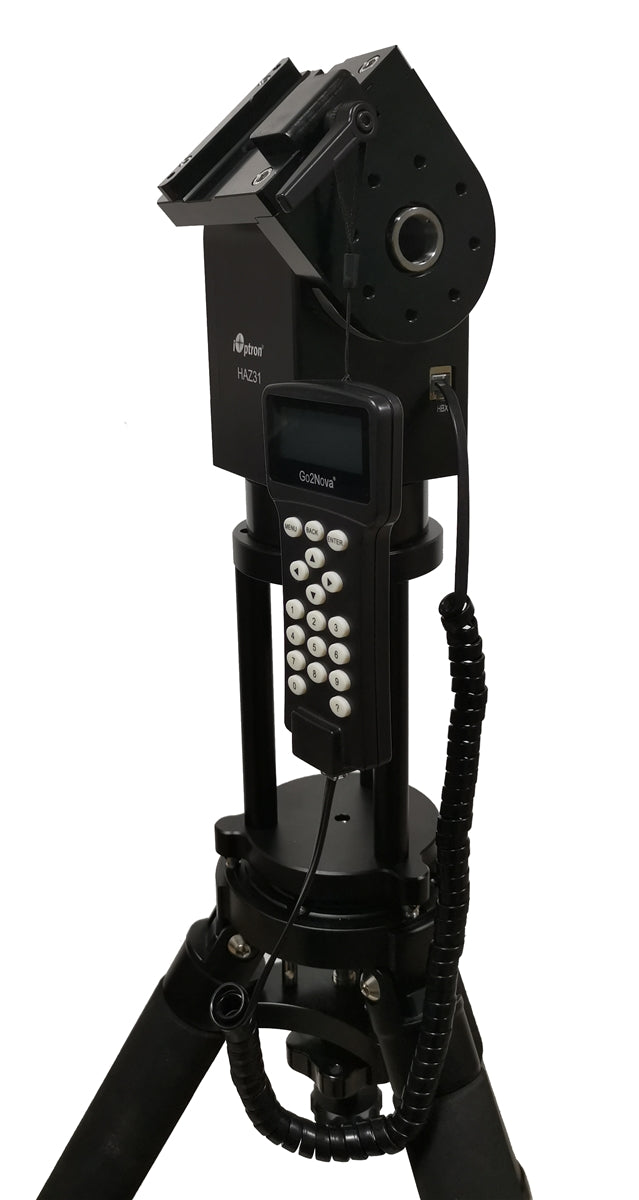

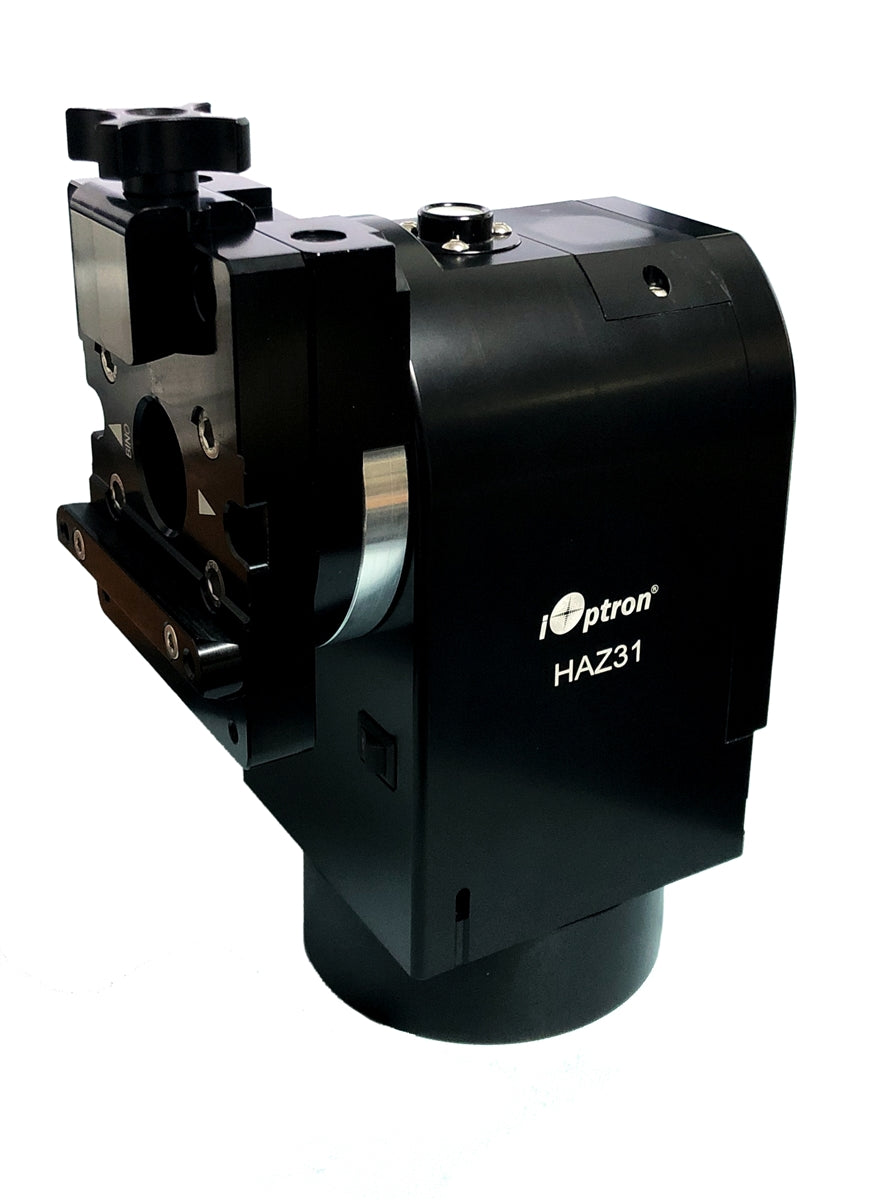

iOptron HAZ31 Alt-Az Strain Wave Mount

| Mount | Strain Wave Altazimuth Mount |
|---|---|
| RA Gear System | Strain Wave Gear |
| DEC Gear System | Strain Wave Gear |
| RA/DEC Reduction Ratio | 480:1 |
| Payload * | 14 kg |
| Mount Weight | 3.7 kg with dovetail saddle |
| Payload/Mount Weight Ratio | 3.78 |
| Drive Motor | Stepper motor |
| Structure Material | All metal, CNC machined |
| Exterior Finish | Anodized black |
| Level Indicator | Level bubble |
| Control System | GOTONOVA/Commander |
| Hand Controller | Go2Nova® 8409 with ~212,000 objects database |
| Tracking | Automatic |
| Maximum Slew Speed | 8º/sec |
| Power Consumption | 0.6A(Tracking), 1A(GOTO) |
| Power | DC12V-5A (5.5/2.1mm DC plug) |
| AC Adapter | 100V ~ 240V (included, indoor use only) |
| Power Off Brake | Electronic friction brake |
| GPS | Built-in |
| Wi-Fi | Built-in |
| Communication Port | Yes (Wi-Fi and USB, via HC) |
| Firmware Upgrade | Yes |
| Dovetail Saddle | Vixen & Losmandy |
| Tripod | Optional |
| Operation Temperature | -20ºC ~ 40ºC |
| Warranty | Two year limited |
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
- Advanced strain wave gear system technology
- Payload capacity of 14 kg with the mount weight of 3.7 kg (includes dovetail saddle)
- CNC machined
- Unique friction brake on both AZI and ALT to safely stop movement during a planned or unplanned power interruption
- Go2Nova® hand controller with ~212,000 object database
- Built-in GPS receiver
- Dual saddle (Vixen and Losmandy-D styles)
- Level & Go
- Large binocular mounting
- Satellite tracking
- Built-in zero position search and locator
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control

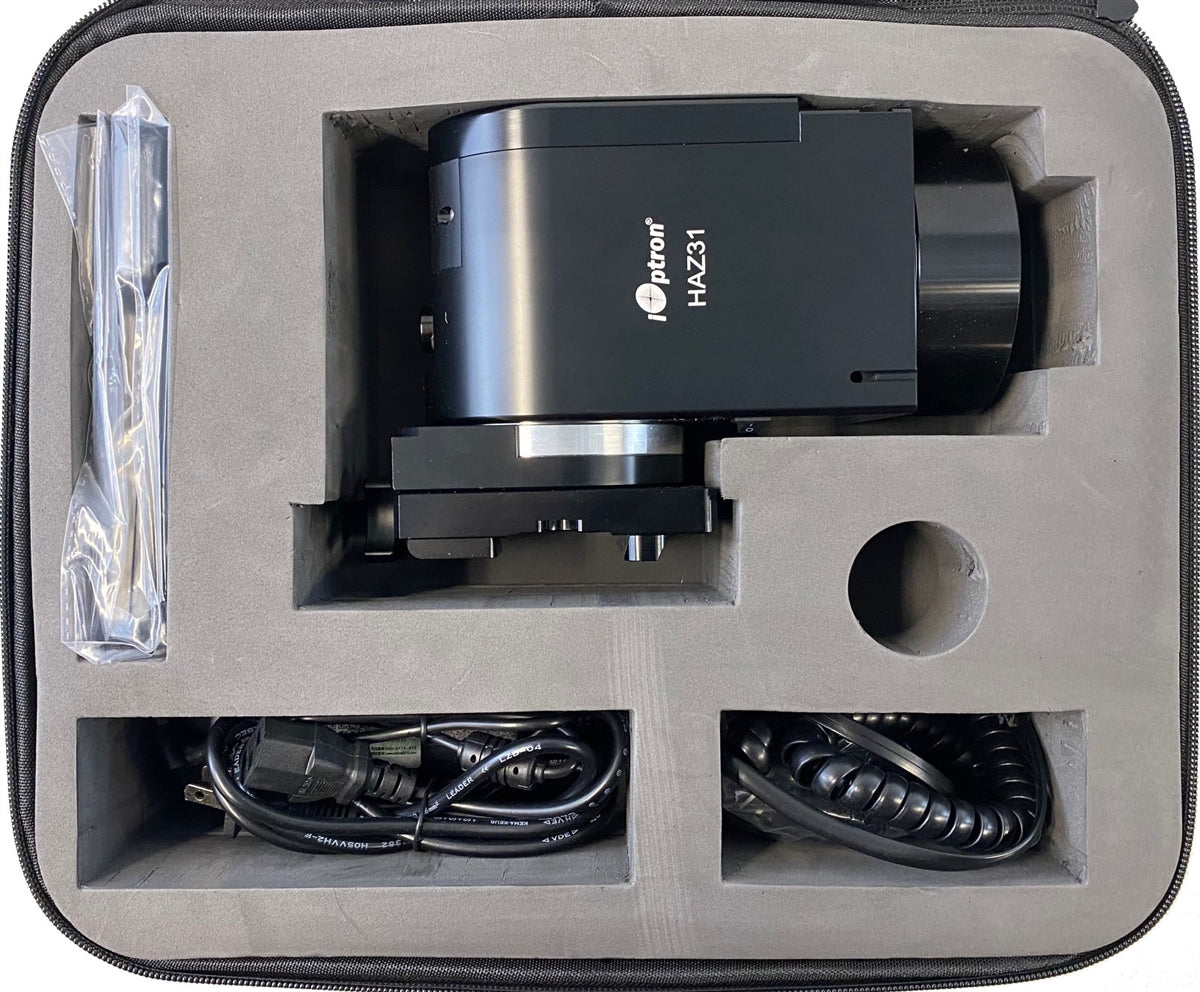

- Carrying case
- Two-year warranty
Add an iOptron Carbon Fibre Tripod with your mount.
