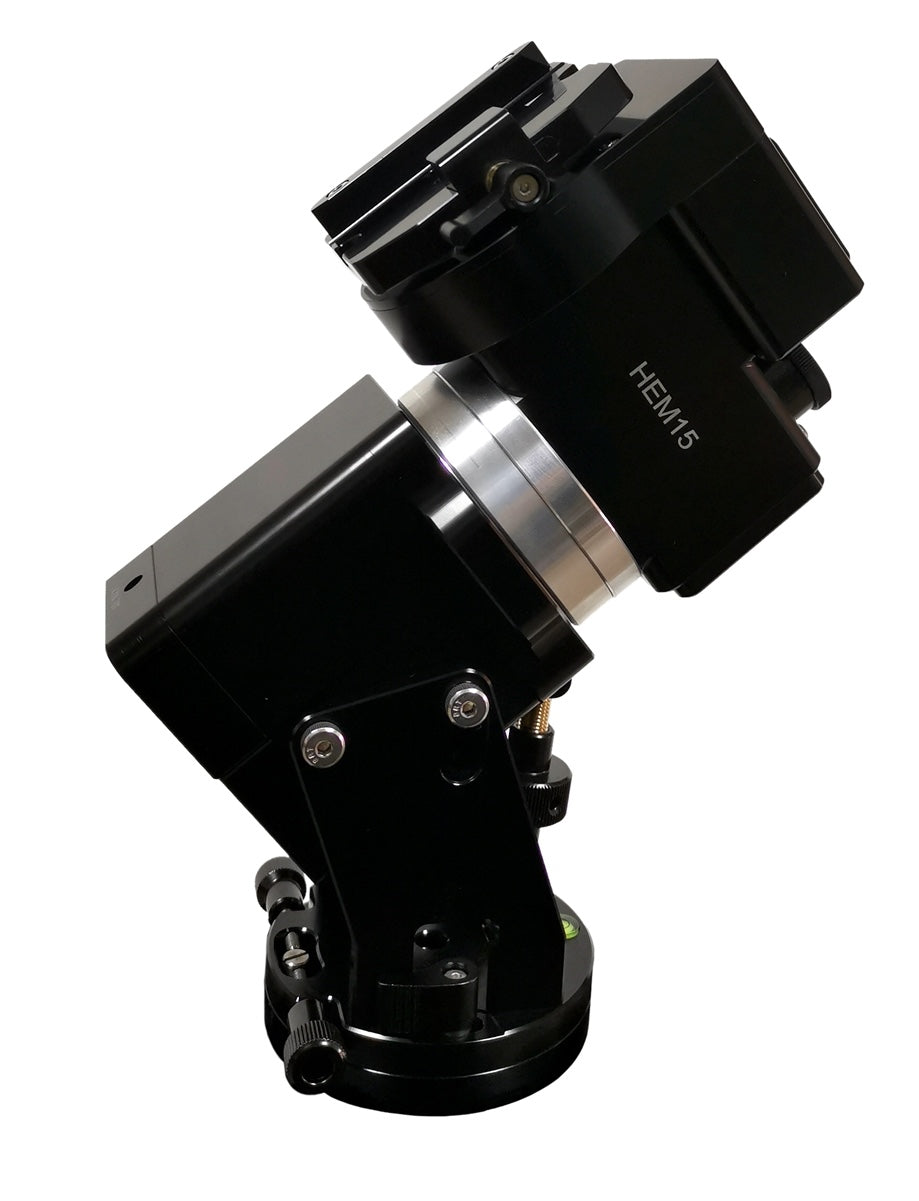

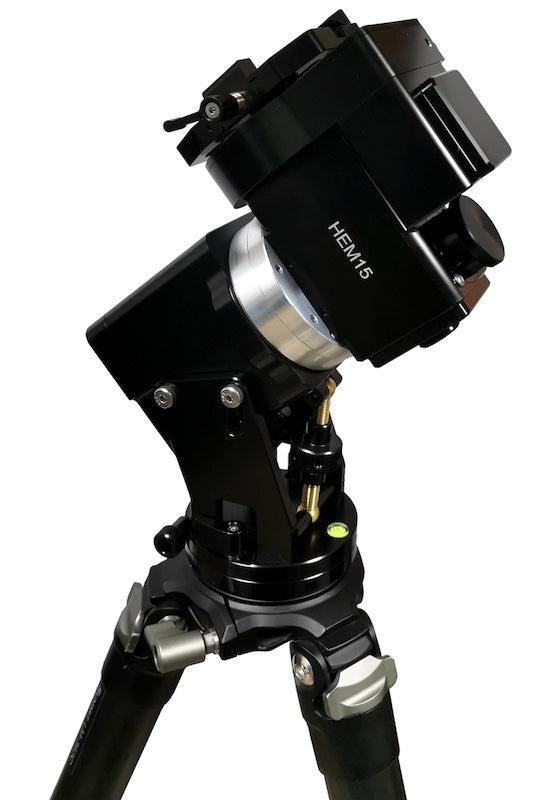

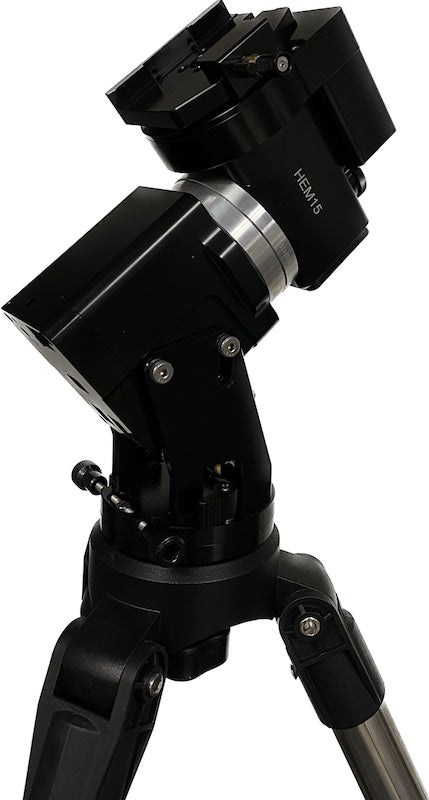

Introducing the HEM15, the latest addition to iOptron’s revolutionary hybrid strain wave drive mounts. This light weight tiny titan will deliver an astronomy experience like never before. With a mount head weighing 2.5 kg, it can carry an 8.2 kg payload without needing a counterweight. Applying iOptron’s multi-decade experience creating precision mounts, the HEM15 brings this vision to reality.
Utilizing state of the art strain wave drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM15 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break allows the mount safely stop even after an abrupt power loss.
A HEM15 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Pi device via INDI driver.
Features
Advanced strain wave gear technology
Payload capacity of 8.2 kg (18 lbs) with the mount weight of 2.5 kg (5.5 lbs)
CNC machined
Unique friction brake to safely stop movement during a planned or unplanned power interruption
360 second gear period
Go2Nova® hand controller with ~212,000 object database
iPolar electronic polar scope for easy and accurate polar alignment
No moving, no wrapping cable system
Vixen dovetail saddle
Built in zero position search and locator
Integrated ST-4 autoguiding port
Built-in Wi-Fi (via hand controller) USB port for firmware upgrade and computer control
3/8"-16 mounting hole for your camera tripod
Soft carrying case
Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
Optional external iGuider for autoguiding (#3360-HEM)
