iOptron HEM27 Hybrid Equatorial Mount with iPolar

1 4
$4,175.00 NZD
$4,175.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

Introducing the HEM27, iOptron's revolutionary hybrid harmonic drive mount. This light weight, high payload tiny titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron's multi decade experience creating precision mounts, the HEM27 brings this vision to reality.

Utilizing state of the art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, its a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

An HEM27 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

Includes the iPolar electronic polar scope for easy and accurate polar alignment.



Features:

  • Advanced harmonic drive technology
  • Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs)
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 360 second gear period
  • Permanent periodic error correction (PPEC)
  • Go2Nova® hand controller with ~212,000 object database
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Cable management system, no hanging exterior cables to moving parts
  • Dual saddle (vixen and losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi(via hand controller)
  • USB port for firmware upgrade and computer control

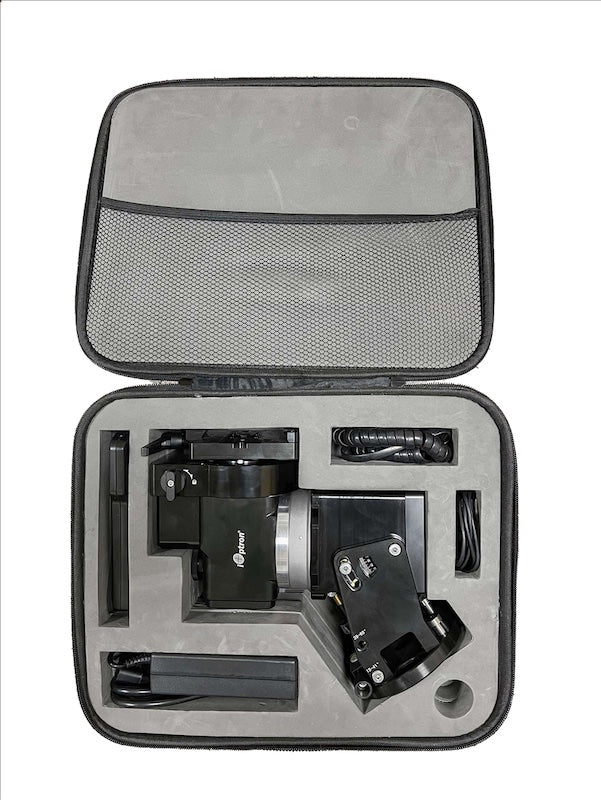

  • Soft carrying case
  • Two year warranty



View full details

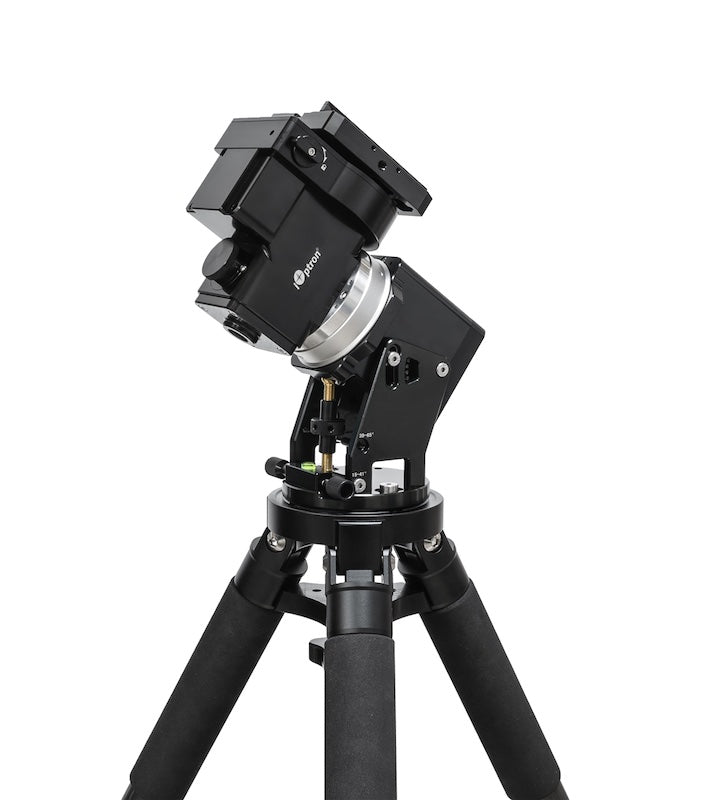

Add an iOptron Carbon Fibre Tripod with your mount.

Mount Hybrid Equatorial Mount
RA Gear System StrainWave 17 (RA) / worm gear (DEC)
DEC Gear System Backlash-free worm/belt system
RA Reduction Ratio 120
Payload w/o CW * 13.5kg (29.14 lbs)
Mount Weight 3.4kg (7.49 lbs) w/o dovetail saddle, 3.7kg (8.15 lbs) with dovetail saddle
Payload/Mount Weight 3.65
Max Payload with CW * 20kg (44 lbs)
Period 360 second
Drive Motor Stepper motor
Structure Material All metal, CNC machined
Exterior Finish Anodized black
PEC Yes, Permanent PEC
Latitude Adjustment Range 15º ~ 65º
Azimuth Adjustment Range ± 5º
Polar Scope iPolar electronic polar scope
Level Indicator Level bubble
Control System GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Max Slew Speed 6º/sec
Power Consumption 0.5A (Tracking), 1A (GOTO)
Power Requirement 12V DC, 5A
AC Adapter 100V ~ 240V (included, indoor use only)
Power Off Brake Electronic friction brake
Power-down Memory Yes
Wi-Fi Built-in

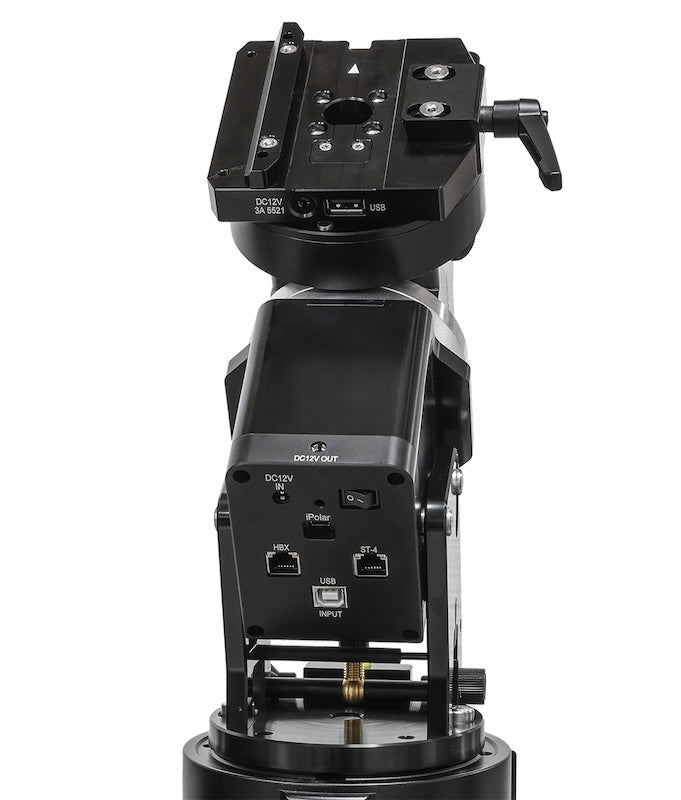

Communication Port Yes (Wi-Fi and USB)
Autoguide Port Yes (ST-4 compatible)
Firmware Upgrade Yes
Tripod Optional
Counterweight Shaft SS Φ20X200mm, M16 thread (Optional)
Counterweight 10 lbs (4.5kg) (Optional)
Operation Temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited
* Payload based on center of gravity to the RA rotation axis or an OTA size of ~220mm.
Max Payload 50 kg (110 lbs)
Self Weight 2.29 kg (5 lbs)
Plate Diameter 120mm (~4.7")
Adjustable Height 535 - 935 mm (21" - 36.8")
Tube Size Ø40mm (upper) / Ø36mm (lower) (Ø1.6" / Ø1.4")
Warranty One year limited
