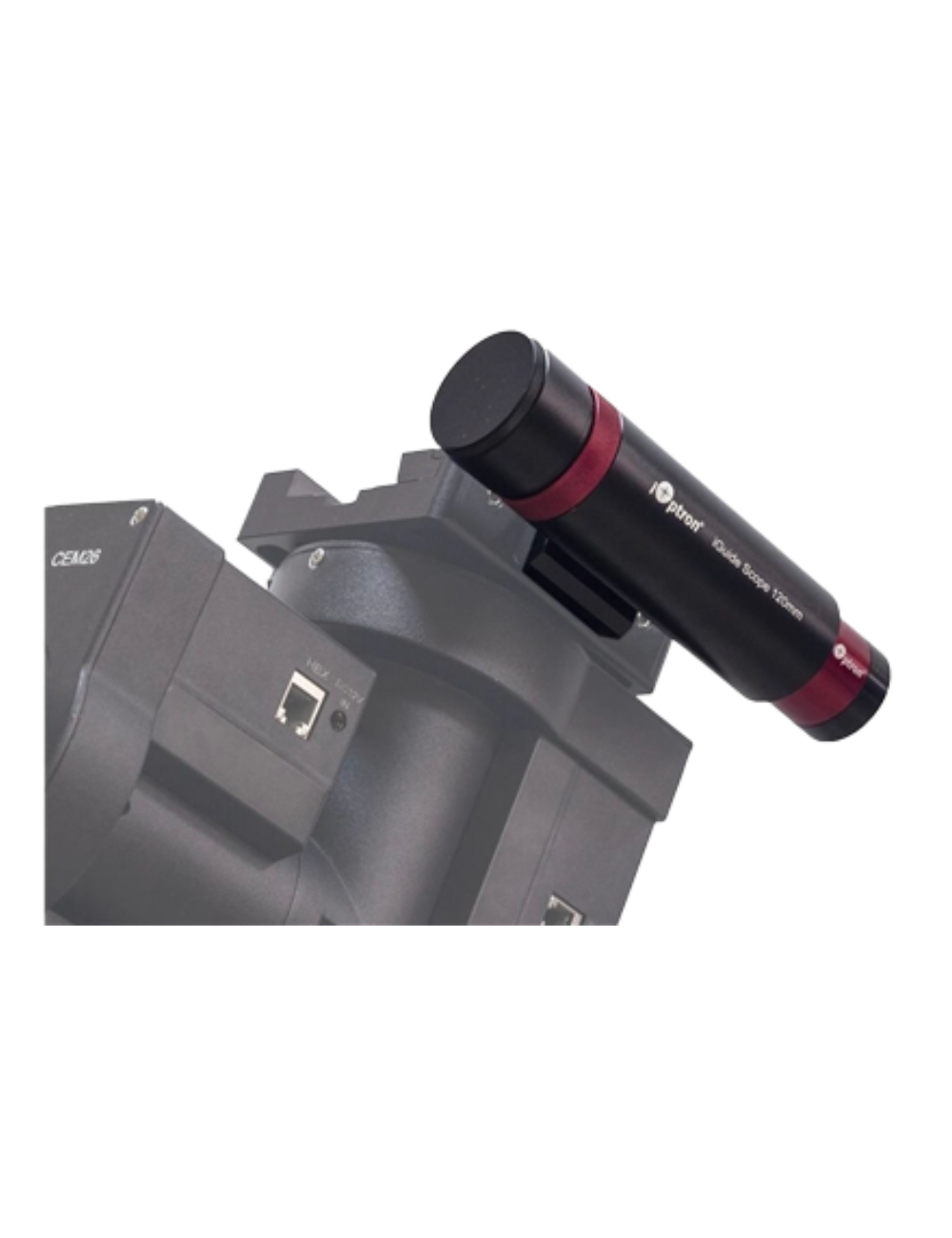

iOptron iGuider Autoguider System

The iOptron iGuide compact autoguider system consists of a portable mini guiding scope with a diameter of 30mm and focal length 120mm and an iGuider 1 Camera.

The resolution of the autoguider is 6.44 arc sec/pixel, especially suitable for guiding with short to medium focal length telescopes.

With dielectric AR-coated achromatic lenses, the iGuide Scope is sharp in imaging and ensures high quality guiding.

The iGuide autoguider can mate with iOptron CEM26/GEM28 mounts seamlessly without any adapters, otherwise the dovetail base can be mounted in place with the provided screw holes on the dovetail base.

iGuide Scope:
Weight: 200 g (including iGuide Scope and iGuider camera)
Aperture: 30mm
Focal length: 120mm
Focal ratio: F/4

iGuider Camera
Pixel size 3.75
Pixel array: 1280*960
Mega pixel: 1.2 MP
Chip size: 1/3
Resolution: 6.44 arcsec/pixel (coupled with iGuide Scope)
Guiding method：Support Pulse Guiding (ASCOM Guiding), not support ST-4 Guiding
Dimensions: 1.25” telescope eyepiece adapter

* For CEM40/GEM45 6" V/D dovetail saddle with 2XM3 mounting holes.
