SkyHunter with iPolar

Skip to product information
1 of 5

iOptron

Regular price $1,495.00 NZD
Regular price $1,675.00 NZD Sale price $1,495.00 NZD
Reduced Sold out
Taxes included. Shipping calculated at checkout.

A GoTo telescope mount system than can GO ANYWHERE!

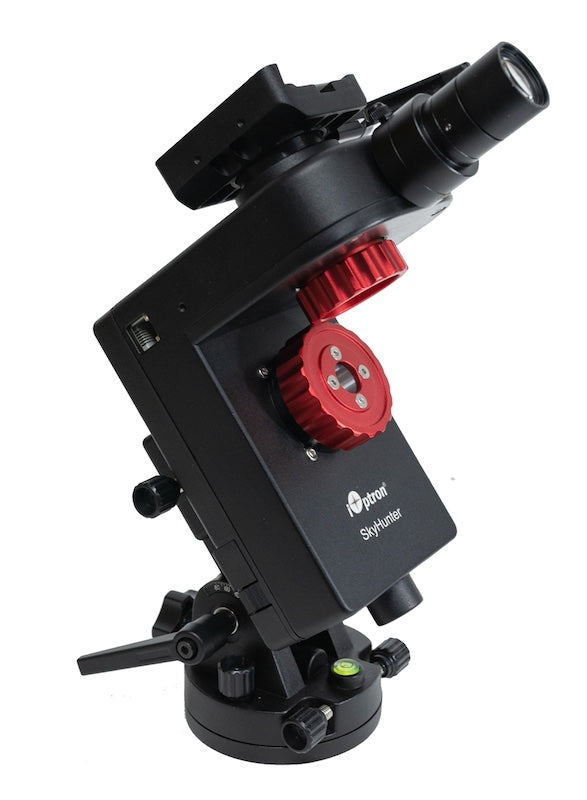

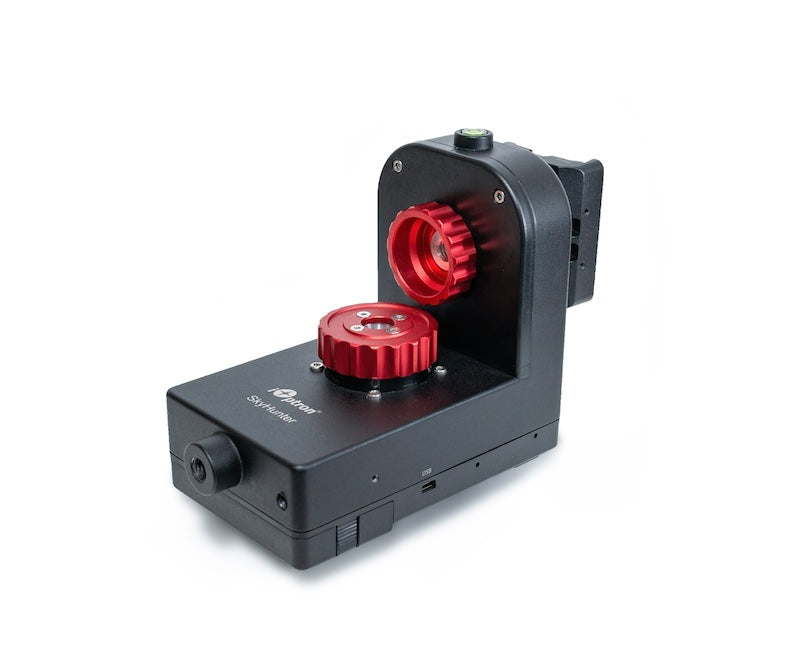

iOptron's new ultra compact EQ/AZ GoTo mount -- introducing The SkyHunter!

Fifteen years after releasing the innovational CubeTM AZ/EQ GoTo mount, the SkyHunter takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history. Weighing in at only 1.3Kg (including internal rechargeable battery), the SkyHunter is capable of supporting a 5Kg payload in both equatorial and alt-azimuth modes.

The SkyHunter mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.

The SkyHunter mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.



Features:

  • Specialized Grab N’ Go GOTO EQ/AZ mount
  • Mount weighs 2.9 lbs (1.3kg)
  • Payload 11 lbs (5kg) (balanced, exclude CW)
  • Dual-axis servomotors with optical encoders
  • Tracking speed: solar, lunar, 1X, 1/2X, S/N
  • Operation in both northern and southern hemisphere
  • Vixen dovetail saddle
  • Built-in rechargeable battery for up to 10 hours of operation (20°C)
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari control
  • USB port for firmware upgrade and computer control
  • Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
  • iPolar electronic polar scope
  • Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
  • Counterweight: 3 lbs (1.35kg)
  • Attaches to a camera tripod with 3/8” or 1/4” threads
  • 1.25" Stainless steel tripod (#3221)
  • Optional carbon fiber tripod
  • Pier-extension (#8041)
  • One year limited warranty on mount, 90 day for battery
View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
GuyM
Bit of a learning curve for a newbie, but very happy

Building my first astrophotography rig around a Williams Optics RedCat51 and the iOpteron Skyhunter with iPolar.

Great support from Astronz, answering my questions about assembly and set up. Some reviews of the Skyhunter point to problems with the RA clutch sticking, but I found the "use weight bar for leverage" solution worked fine.

Set up quick and easy; the instructions do assume a bit of technical knowledge but I'm finding CoPilot makes a great coach, even accepting screenshots if you are unclear.

iPolar took a little getting used to, but now down to a few minutes to get a very good alignment, after lining up on a compass baring. It does require a clear view of the Southern celestial pole, and I sometimes have to jockey the gain a bit if I'm setting up early evening and the light is changing.

Comparing to polar-alignment via platesolving in APT iPolar is faster, simpler, and easier, especially when setting the mount up in roughly the same place.

The mount plays very nicely with APT, so after using iPolar I'll platesolve, go to target, centre and sync. Very little drift even without a guide scope. (As an aside, CoPIlot makes a great coach, even able to interpret screen grabs and offer practical advice)

Not requiring power is another plus, keeping the cabling a bit easier. Powering/connecting the iOpteron, mount and a ZWO EAF all through a single USB-C hub from the laptop works fine.

Once I'd got past total newbie learning (with CoPilot) my first attempt landed my ~180 x 30 second exposures of Eta Carinae and exactly the kind of image I wanted to get.

Added an extra weight later on to balance the scope - CoPilot again very helpful on torque calculations and carrying capacity if you are a newbie like me.

Total rig weight is about 3.2KG excluding counterweights which works fine.

Very happy!

SkyHunter™ GOTO EQ/AZ mount

EQ base

Stainless steel counterweight shaft

3 lbs counterweight

iPolar electronic polar scope

MiniUSB charging cable

#3221 Tripod

#8041 Pier extension

One Year Limited Warranty (90 days on battery)

Mount Ultracompact GOTO EQ/AZ mount
Payload (Max.) 11 lbs (5kg), balanced
Mount Weight 2.9 lbs (1.3kg) with battery
Structure Material Metal frame structure
Motor Drive Dual-axis DC servo motor with optical encoder
Transmission Synchronous belt
Tracking Speed Solar, Lunar, Cel, 1/2 Cel, N/S
Max Slew Speed 4.5°/sec (1080X)
Worm Period 600 sec
RA/DEC Worm Wheel Φ77 mm, 144 teeth
Hand Controller Yes (with optional 8410 HC)
Altitude Adjustment Range 0º ~ 80º
Azimuth Adjustment Range ±5º
Power Requirement Internal rechargeable battery
Battery Type Li-Poly, 3.7V, 2000mAh
Duration of Operation Up to 10 hours at 20ºC
Polar Scope iPolar electronic polar scope
Counterweight Shaft Φ20mmX200mm, 3/8" thread, stainless steel
Counterweight 3 lbs (1.3 kg)
Dovetail Saddle Vixen-type
Body Base Connection Vixen dovetail, 3/8” socket
Autoguiding ASCOM compatible
Power Charge Port MiniUSB (5V)
Wi-Fi Built-in
Communication Port Yes (Wi-Fi and USB)
Firmware Upgrade Yes (via USB port)
Tripod 3221 Stainless Steel, optional carbon fiber tripod
Pier Extension Φ80x190 mm
Operation Temperature -10ºC ~ 40ºC
Warranty One year limited (90 days on battery)
