iOptron
Precision Adjustable AZ/EQ Base
Precision Adjustable AZ/EQ Base
Regular price
$475.00 NZD
Regular price
Sale price
$475.00 NZD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

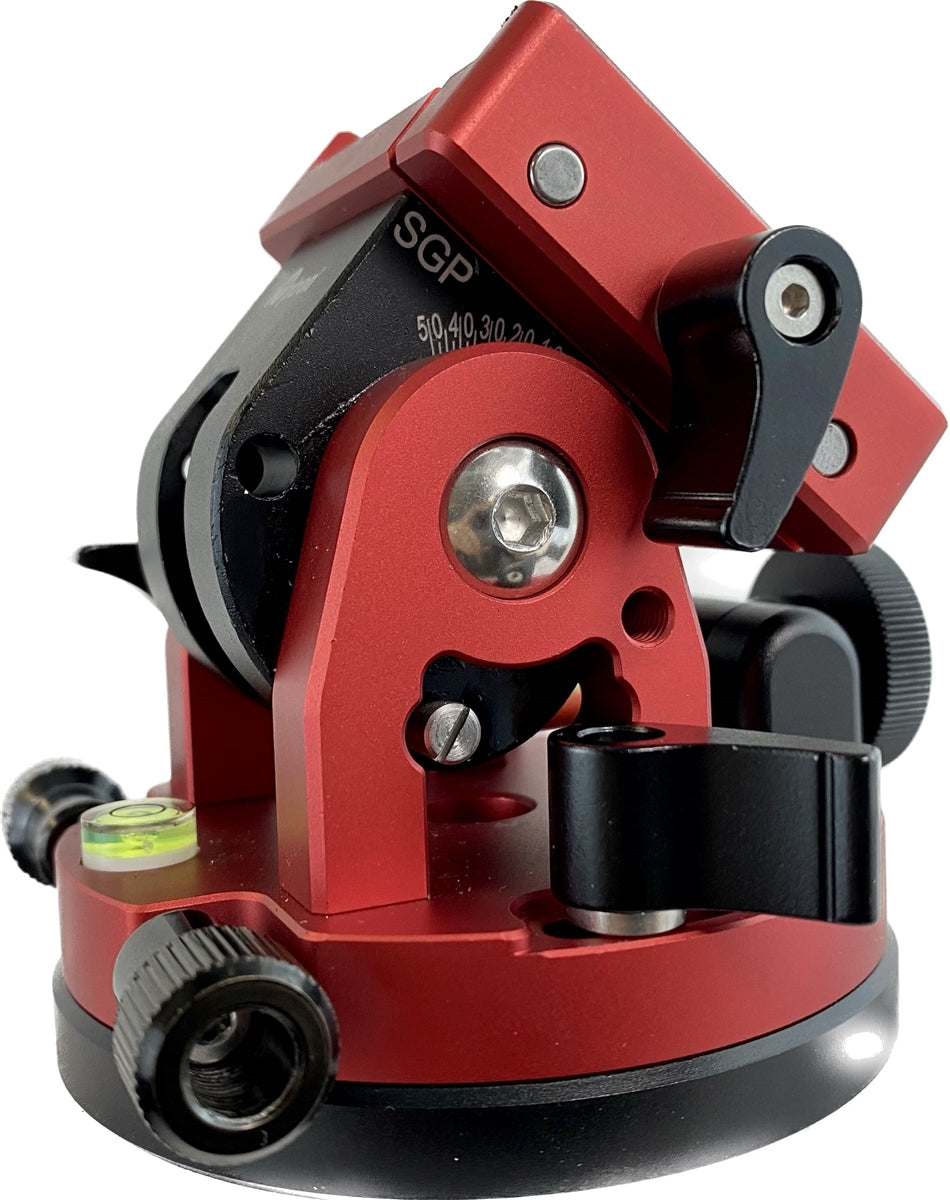

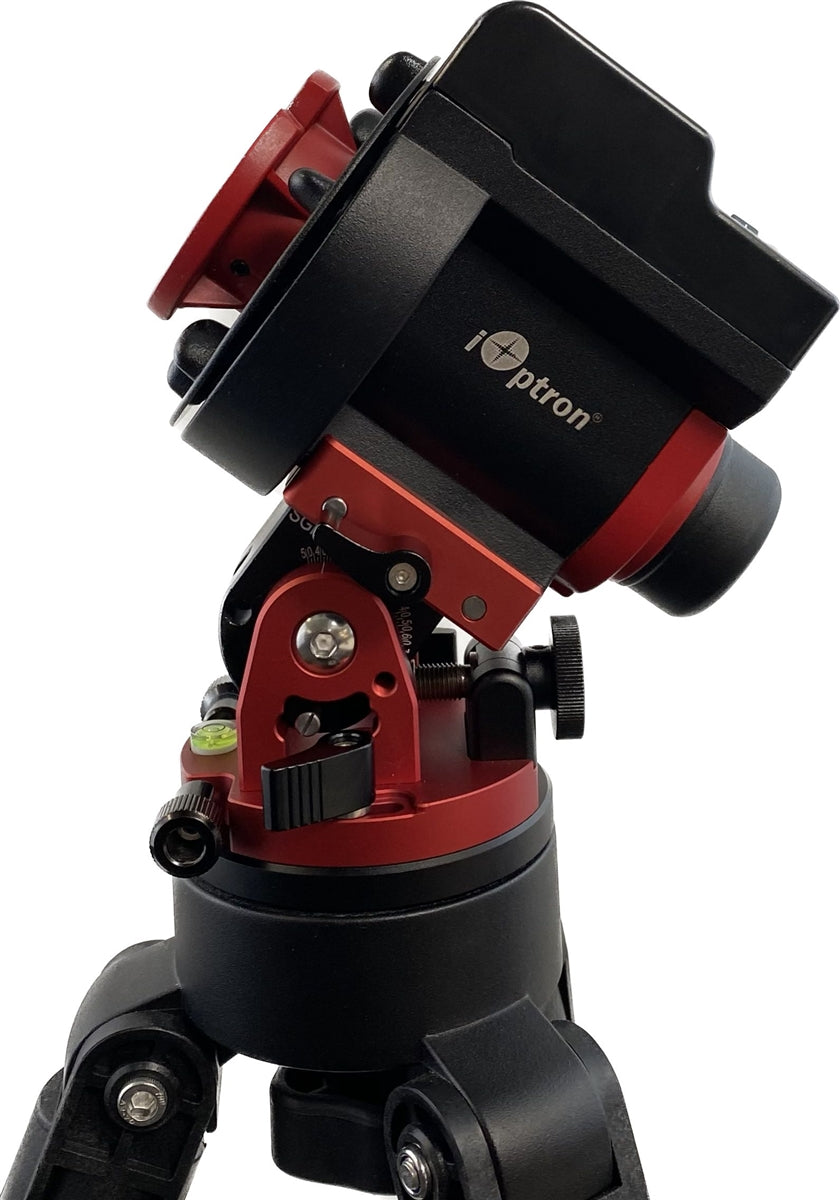

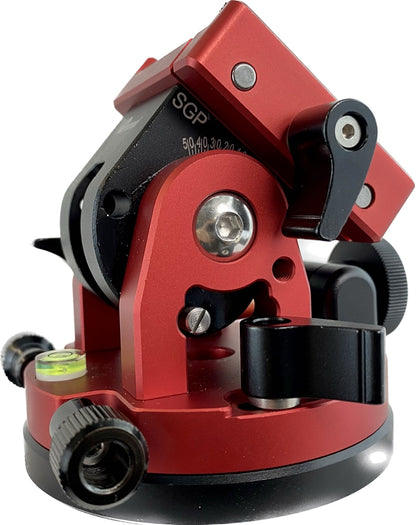

Precision adjustable equatorial base for HST Mini Tracker, SkyGuider Pro, SkyTracker Pro mounts and SkyHunter GOTO mount. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from 0º ~ 90º.
Features
- CNC machined, all metal construction
- Accept Vixen-type dovetail bar (not included)
- 0º ~ 90º in latitude adjustment
- ±5° in azimuth adjustment
- Φ80 mm mounting base
- Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)
Specification
| Dovetail saddle | Vixen-type |
| Mounting base diameter | Φ80 mm |
| Mounting base socket | 3/8” threaded socket |
| Latitude adjustment range | 0º ~ 90º |
| Azimuth adjustment range | ±5º |
| Level indicator | Level bubble |
| Gross weight and dimension | 770g, 10 x 10 x 10 cm |
| Warranty | One year limited |
Tripod and mount not included
