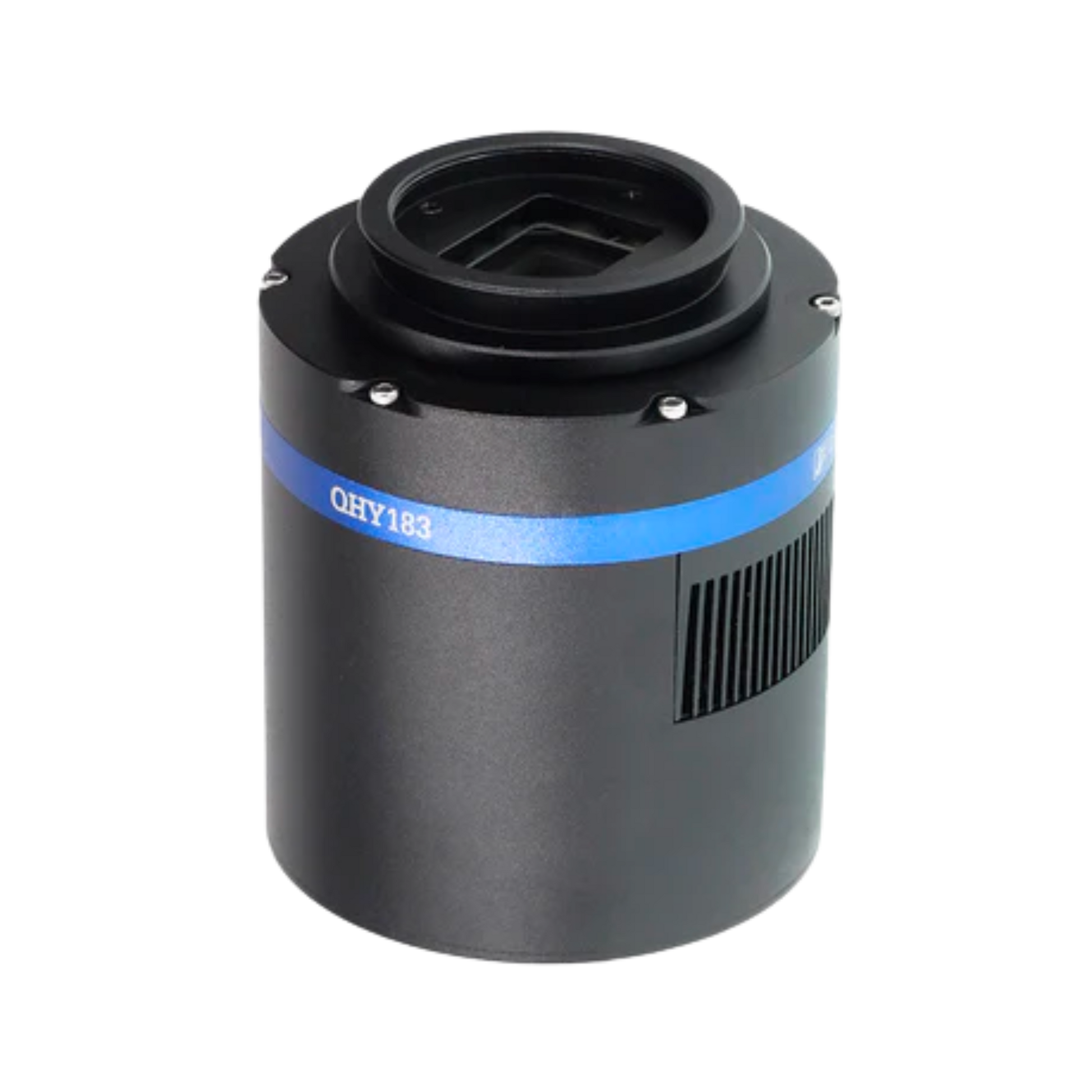

QHY183 Colour Camera
QHY
Couldn't load pickup availability
Share
20 Megapixel, High Res, High QE, Back-Illuminated Cooled COLDMOS Camera
The QHY183C is a one-inch, 20 Megapixel back-illuminated colour CMOS camera with a peak QE of 74%. The pixel size is 2.4um, yielding high-resolution with modest size telescopes. The camera is capable of producing 15FPS@20 Megapixels. It has a two-stage TEC that cools the sensor to -40C to -45C below ambient. The ADC is 12-bit / 16-bit with 1e- read noise! The computer interface is USB 3.0 and exposure times can be set from 50us to 3600sec.
Sony's Image Sensor Exmor R is a back-illuminated CMOS image sensor with improved sensitivity and noise reduction - the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It retains the advantages of CMOS image high-speed operation while dramatically improving sensitivity.
The QHY183C has a 128MB DDR Memory Buffer. A QHY183M 16-bit image is about 40MB, so 128MB of memory can easily buffer a full frame for transfer to the computer using QHY183M software with native single-frame shooting function, instead of intercepting a frame from a continuous video transmission. This makes data transfer to the computer stable and reliable because there is no USB bandwidth or busy CPU problems.
The QHY183C utilizes the Anti-Dew features common to the QHY COLDMOS cameras. A heated optical window prevents exterior dew from forming, and the CMOS chamber has a desiccant plug socket to prevent moisture from forming on the sensor at cold temperatures.
The QHY183C incorporates QHY's Anti-Amp Glow technology to significantly reduce typical CMOS amplifier glow to a minimum, allowing excellent calibration by subtracting a dark frame.

QHY183M Colour Specifications
Attribute | Details |
---|---|
Model | QHY183M/C |
CMOS Sensor | SONY IMX183 |
Mono/Color | Colour |
FSI/BSI | BSI |
Pixel Size | 2.4μm x 2.4μm |
Effective Area | 5544 x 3684 |
Effective Pixels | 20 Megapixels |
Sensor Size | Typical 1 inch (13.3mm x 8.87mm) |
AD Sample Depth | 12-bit (output as 16-bit and 8-bit) |
Fullwell | 15.5ke- |
Frame Rate |
Full Resolution: 19FPS@8bit, 7.5FPS@12bit ROI: 4096 x 2160 (4K HD Video): 31FPS@8bit, 12FPS@12bit 1920 x 1080 (HD Video): 60FPS@8bit, 24FPS@12bit 800 x 600 (SVGA): 106FPS@8bit, 42FPS@12bit 640 x 480 (VGA): 130FPS@8bit, 53FPS@12bit |
Readout Noise | 2.7e-@lowest gain, 1.0e-@high gain |
Dark Current | 0.0024e-/pixel/sec @ -15℃ |
Exposure Time Range | 50μs - 3600sec |
Unity Gain | 10 |
Anti-Glow Control | Amplifier Glow can be reduced during long exposure |
Shutter Type | Electronic Rolling Shutter |
Computer Interface | USB3.0 |
Built-in Image Buffer | 128MB DDR2 Buffer |
Cooling System | Dual Stage TEC cooler (-40℃ below ambient, test temperature +20℃) |
Optic Window Type | QHY183M: AR+AR High Quality Multi-Layer Anti-Reflection Coating QHY183C: IR-Cut Filter |
Telescope Interface | M42/0.75 |
Back Focal Length | 17.5mm (±0.2) |
Anti-Dew Heater | Available |
Weight | 650g |
