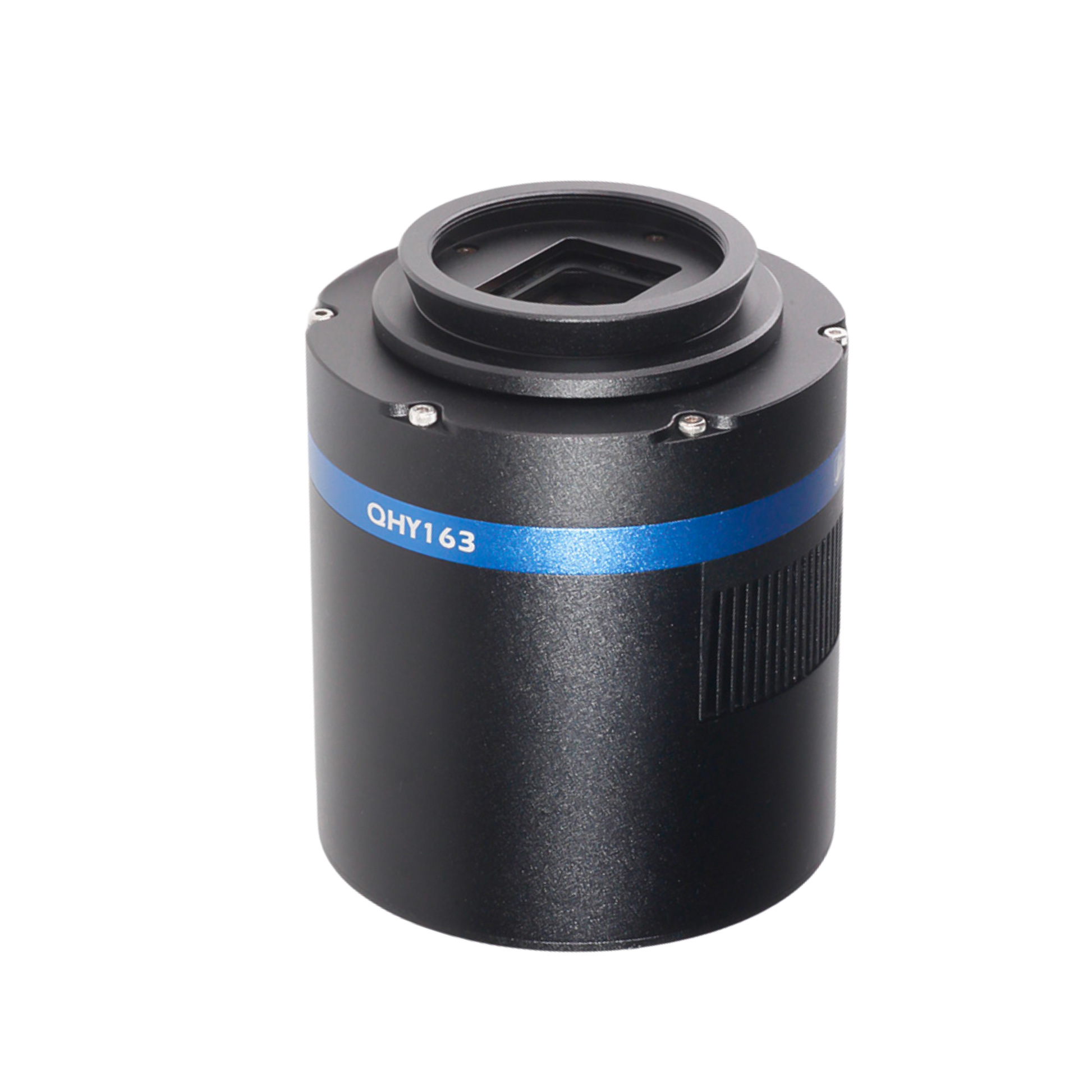

QHY163 Mono Camera
QHY
Couldn't load pickup availability
Share
Cooled USB 3.0 Planetary and Deep Sky COLDMOS Camera
The QHY163M camera is an incredible value. It uses a relatively large 4/3inch, 16 Megapixel monochrome CMOS sensor. The QHY163M has exceptionally low readout noise (as low as 1 electron!), low dark current and two-stage cooling capable of reducing the sensor temperature to -40C below ambient. The sensor chamber is sealed and the optical window is heated to prevent dew. The camera's interface is USB 3.0 and delivers 23FPS@16 megapixel full resolution output, 30FPS@4K HD video output.
The QHY163 has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 2.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also helps multiple camera applications and avoids USB transfer problems. For example, it is possible to operate four QHY163M cameras on the same computer to create an LRGB imaging array.
Full Anti-Dew Solution - With more than a decade of experience designing cooled cameras, QHYCCD has applied this knowledge to the QHY163 camera. The full anti-dew technology includes a sealed CMOS chamber with silicon gel tube socket and a heated chamber optical window. This technology prevents dew from forming on the sensor itself, or on the chamber window, even in a high humidity environment.
Check the QHY Connection Combination Table for the various adapter options
http://qhyccd.com/QHY163.html

QHY163 Mono Specifications
| Attribute | Details |
|---|---|
| Sensor | 4/3 inch 16 Megapixel CMOS Mono Sensor |
| Illumination | Back Illuminated |
| Sensor Size | 17.7mm x 13.4mm |
| Pixel Size | 3.8μm x 3.8μm |
| Effective Pixels | 4656 x 3522, 16 Megapixels |
| Shutter | Electronic Rolling Shutter |
| Exposure Time | 50μs - 3600sec |
| Frame Rate (8-bit) |
22.5FPS@16MP, 30FPS@4K HD Video 57FPS@1920x1080, 60FPS@1280x1024 80FPS@1024x768, 100FPS@800x600 |
| AD Sample Depth | 10-bit/12-bit (8-bit/12-bit output) |
| Read Noise | 2.4e@low gain, 1e@high gain |
| Dark Current | 0.0024e-/pixel/sec @ -15℃ |
| Full Well | 20ke- |
| Cooling | 2-stage TEC, -40℃ below ambient, typical. Temperature regulated |
| Ports | 4-pin QHYCFW2 socket / 6-pin RJ11 Guide Port |
| Computer Interface | USB3.0 |
| Telescope Interface | M42/0.75 & 2-inch adapter |
| Weight | 450g |
| Power | USB Powered for camera and +12V powered for TEC |
